PU Foam Spray
>
|
| สถานที่กำเนิด | กวางตุ้งจีน |
| ชื่อแบรนด์ | PLYFIT |
| ได้รับการรับรอง | REACH,SGS |
| หมายเลขรุ่น | A0101,A0102,A0104 |

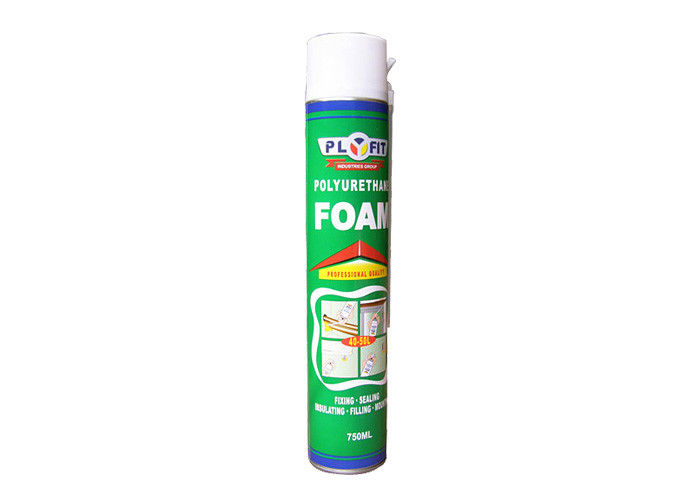

750ml fire retardant pu foam for gap filler
General Purpose Construction Polyurethane Adhesive Sealant Pu Foam polystyrene spray foam spray foam house insulation
| Product name | Polyurethane foam |
| Shelf life | 1 year |
| Color | White |
| Advantage | Strong adhesion |
| Packaging | 12pcs/carton |
| OEM/ODM | Avaliable |
Technical Data Sheet for General Purpose Construction Polyurethane Adhesive Sealant Pu Foam polystyrene spray foam spray foam house insulation
| ITEM | VALUE |
| Tack-Free Time(min) | 7～15 |
| Cutting Time(hour) | 1～1.5(+25℃) |
| 2～3(-5℃) | |
| Density(kg/㎥) | 12～18 |
| Yield(L) | 30～35 |
| Filling square(thickness 5cm)㎡ | 0.7～0.9 |
| Thermal conductivity〔mW/(m·K)〕 | ＜40 |
| Adhesive strength(kPa) | ＞80 |
| Tensile strength(kPa) | ＞30(10﹪) |
| Bending strength(kPa) | ＞70 |
| Compressive strength(kPa) | ＞100 |
| Open cells content% | 60～70 |
| Water absorption(ML) | 0.5~2 (no epidermis) |
| ＜0.5 (with epidermis) | |
| Fire Class of the cured foam | B3 |
| Dimensional stability(23℃) | 0～1.5%(foaming direction) |
| 0～2.0%(flat direction) | |
| Environment | Contains no CFC’s, no HCFC’s, Ozone friendly |
| Toxicity of cured foam | Non-toxicity |
| Service temperature range of cured foam℃ | -40——+80 |
| Application temperature range℃ | -10——+35 |
| Shelf life(month) | 12 |
Art No. A0101 500ml/A0103 750ml
Surface Preparation
lSurface should be cleaned of dust and mortar clods
lSurface should be sprayed with water using water sprayer
lProtect window profiles from the foam’s outgrow
Product Preparation
lThe can temperature should be between +10 ºC to +30ºC
lOptimal temperature of can is +20 ºC
l If can temperature is too low, the product should be put into warm water of +30 ºC for 15 minutes or left overnight in room temperature.
Product Application Instruction
lShake the can vigorously(20-30 seconds valve down) in order to mix the components
lScrew the can onto the adaptor
lThe working position is valve down
lVertical gaps should be filled from down to up
lDo not fill the whole gap-foam grows in volume
l If you fill window or door gaps, the gaps maximum gap size should be 3 cm. Foam should not be used in gaps larger than 5 cm.
lThe speed of application and the thickness of the bead should be controlled by the adequate pressure on the gun or adaptor trigger.
l If you stop the application for time longer than 5 mins, remember to shake the can before continuation of works.
Finishing Works
lThe excess of foam should be cut after the foam has cured. The foam should not be pushed back into the gap when it’s still uncured as it will cause structural defects and worsen insulation effect.
lAfter the foam has fully cured it should be protected from UV by mortar or paint.
l If you want to keep using the same can after longer time the gun and the adaptor and valve should be cleaned with the cleaner for polyurethane foams.
Packing Details:
| ART NO. | CONTENT | CAN MATERIALS | PACKING | CAN SIZE | CARTON SIZE | 20’GP |
| A0101 | 300ml/pcs | Tinplate | 12pcs/ctn | 65x158 mm | 276x206x 206mm | 2500ctns/ 30000pcs |
| A0102 | 500ml/pcs | Tinplate | 12pcs/ctn | 65x198 mm | 276x206x 260mm | 1980ctns/ 23760pcs |
| A0103 | 750ml/pcs | Tinplate | 12pcs/ctn | 65x300 mm | 276x206x 352mm | 1320ctns/ 15840pcs |
Detailing Images
Why choose us:
1. Over 13-year manufacturing experience;
2. 11-year golden supplier on .com;
3. Exporting experience in over 80 countries;
4. Quality Guarantee: ISO9001,REACH,TUV, Factory Audit, SASO;
5. On time delivery, professional R&D team, satisfied sales service;
6. Customized product available.
